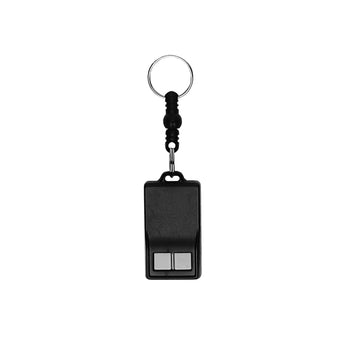

Linear ACT-22B

3-Channel Custom Block Coded Key Ring Transmitter

The Linear ACT-22B 3-Channel Custom Block Coded Key Ring Transmitter provides secure wireless access control with three programmable channels and 318 MHz MegaCode transmission. Its sequential block coding, over one million available codes, long-life lithium batteries, and compact quick-disconnect key ring design make it well suited for Linear access receivers and controllers.

• Three-Channel Operation — Sends channels one and two from the left or right button, while pressing both buttons activates channel three, with a 10-second transmission timeout to help prevent continuous transmission.
• MegaCode Security — Uses factory-programmed MegaCode technology with over 1,000,000 codes to minimize duplication and prevent unauthorized transmitter reprogramming.
• Custom Block Coding — Sequential transmitter ID codes can be programmed locally or remotely through Linear access controllers, with selectable facility codes for additional system configuration.
• Long-Life Wireless Design — Operates at 318 MHz using two 3V 1616 lithium batteries with up to five years of service life and includes a quick-disconnect key ring.
• Compact Linear Compatibility — Works with Linear access receivers and controllers and measures 1.25" W × 2.25" H × 0.48" D for convenient key ring use.
