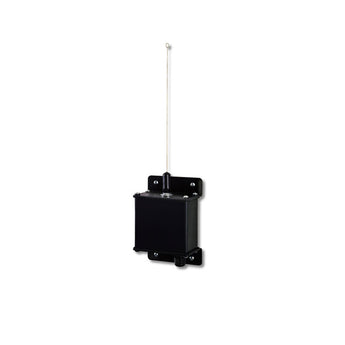

Linear ACP00727

WOR Wiegand Output Receiver

Linear ACP00727 Wiegand Output Receiver provides a wireless access control interface between Linear block-coded transmitters and Wiegand-compatible access control panels. Its selectable Wiegand formats, adjustable 5 to 500-foot radio range, configurable facility codes, and weather-resistant enclosure support flexible indoor or outdoor access control installations.

• Flexible Wiegand Integration — Supports selectable 26, 30, and 31-bit Wiegand output formats and connects to an access control panel through a 5-wire interface without requiring software changes for transmitter enrollment.
• Adjustable Radio Range — Operates at 318 MHz with a field-adjustable read range from 5 to 500 feet, allowing the receiver's gain to be configured for the installation environment.
• Configurable Access Control — Provides 16 dipswitches for facility code selection along with adjustable lockout, hold, and button-offset options, while allowing individual buttons on compatible multi-button transmitters to be disabled.
• Flexible Antenna Options — Includes a local whip antenna and supports optional EXA-1000 omnidirectional or EXA-2000 directional antennas using RG-59 cable and a Type F connector.
• Indoor & Outdoor Ready — Uses a weather-resistant enclosure with gaskets and a weather-tight wiring strain relief for indoor or outdoor mounting, plus RADIO and STATUS indicators and receiver test points for monitoring operation.
