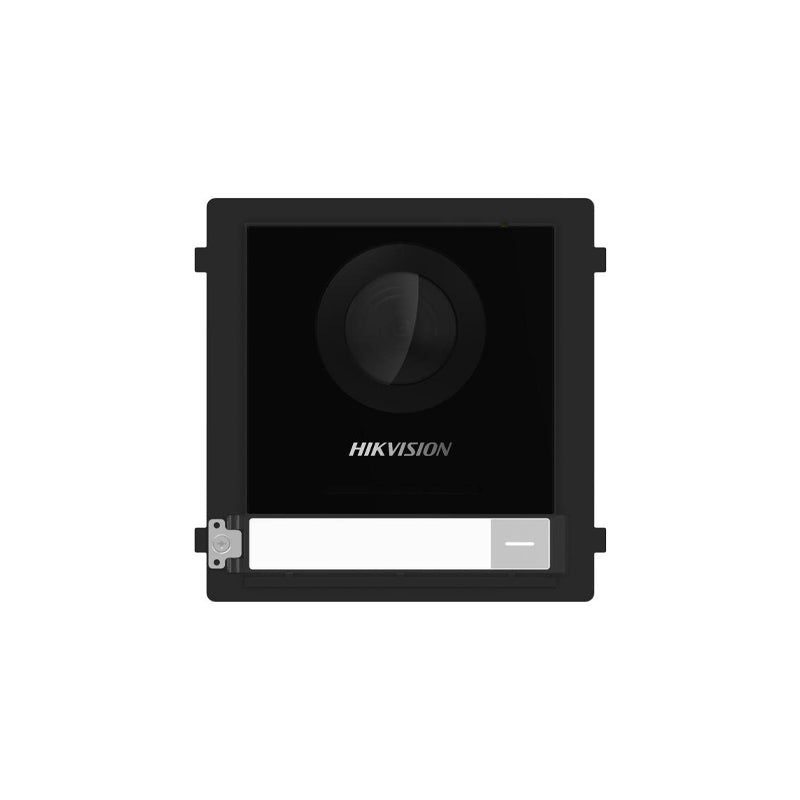

Hikvision DS-KD8003Y-IME2

2-Wire Main Unit Video Door Phone

The Hikvision DS-KD8003Y-IME2 2-Wire Main Unit Video Door Phone is a modular door station featuring a 2MP fisheye camera, 146° horizontal viewing angle, IR assistance, and two-way audio with noise suppression and echo cancellation. Designed for residential and commercial entry systems, it supports two-wire IP communication, two lock-control relays, four alarm inputs, surface or flush mounting, and IP65-rated outdoor protection.

• 2MP Fisheye Video: Captures 2MP video with a 146° horizontal and 82° vertical field of view, WDR support, and IR illumination up to 3 m for improved visibility in low light.
• Two-Wire Modular Design: Serves as the main unit for a two-wire modular door station and supports TCP/IP, RTSP, IPv6, and ONVIF network protocols.
• Two-Way Audio: Built-in omnidirectional microphone and loudspeaker support full communication with noise reduction and echo cancellation, plus adjustable volume.
• Dual Lock Control: Provides two relay outputs rated up to 30 VDC and 2 A, along with two door-contact inputs and two exit-button inputs for flexible access control.
• Outdoor-Ready Construction: IP65 protection, surface or flush installation, one physical call button, tamper input, and operation from -40°C to 60°C (-22°F to 140°F).
