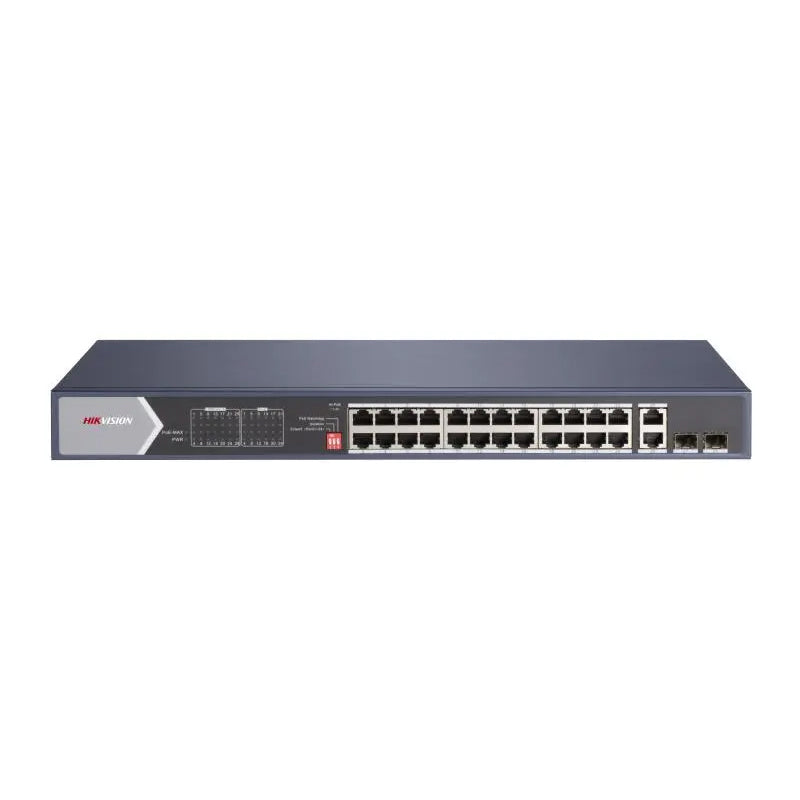

Hikvision DS-3E0528HP-E

24-Port Gigabit Unmanaged PoE Switch

Hikvision DS-3E0528HP-E 24-Port Gigabit Unmanaged PoE Switch delivers 24 Gigabit PoE ports, four high-power Hi-PoE ports, and dedicated Gigabit RJ45 and fiber uplinks for high-density surveillance and network deployments. With a 370W PoE budget, up to 90W per Hi-PoE port, 300 m long-range transmission, PoE watchdog, port isolation, and 6 kV surge protection, it provides dependable plug-and-play power and connectivity for demanding installations.

• 24-Port Gigabit PoE Connectivity — Provides 20 standard Gigabit PoE ports, four Hi-PoE ports, two Gigabit RJ45 ports, and two Gigabit fiber optical ports for flexible device and uplink connections.
• 370W PoE Power Budget — Supports IEEE 802.3af/at/bt standards with up to 90W on ports 1–4 and up to 30W on ports 5–24 for powering a wide range of network devices.
• 300 m Long-Range Transmission — Supports extended network and PoE transmission up to 300 m through ports 21–24, with performance dependent on the connected device and cable conditions.
• Intelligent Surveillance Features — PoE watchdog automatically detects and restarts unresponsive cameras, while port isolation helps improve network security by separating connected devices.
• Rack-Mount Metal Design — Features a high-strength metal enclosure, rack installation with mounting ears, 56 Gbps switching capacity, 41.664 Mpps forwarding rate, and 6 kV PoE surge protection.
