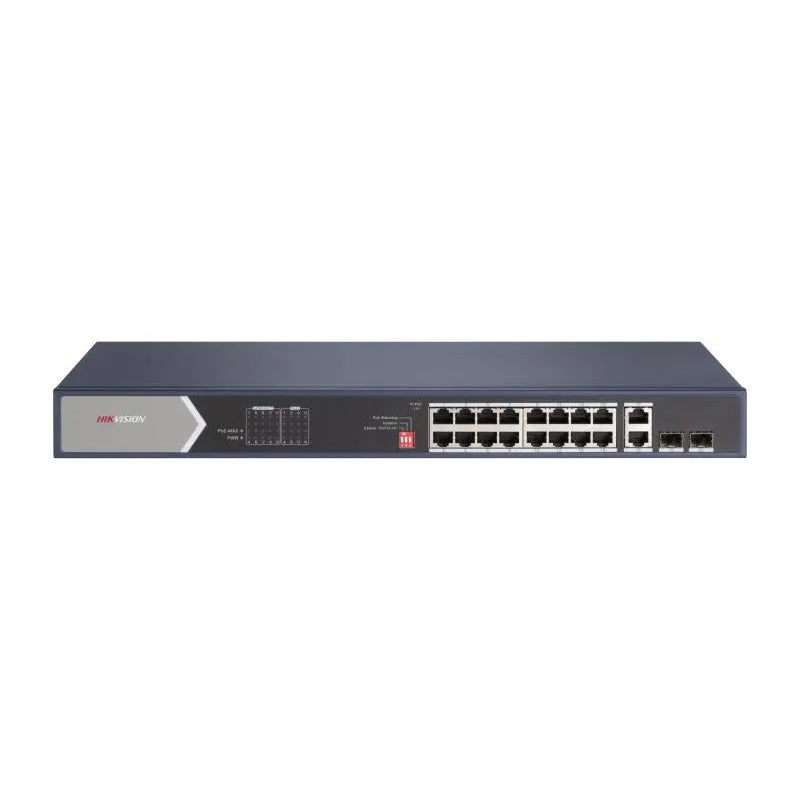

Hikvision DS-3E0520HP-E

16-Port Gigabit Unmanaged PoE Switch

Hikvision DS-3E0520HP-E 16-Port Gigabit Unmanaged PoE Switch provides 16 Gigabit PoE ports with four high-power Hi-PoE ports, plus dedicated Gigabit RJ45 and fiber uplinks for expanding surveillance and network infrastructure. With a 225W PoE budget, 90W Hi-PoE output, 300 m long-range transmission, PoE watchdog, port isolation, and 6 kV surge protection, it delivers reliable plug-and-play connectivity for demanding deployments.

• 16-Port Gigabit PoE Network — Includes 12 standard Gigabit PoE ports, four Gigabit Hi-PoE ports, two Gigabit RJ45 ports, and two Gigabit fiber optical ports for flexible connectivity.
• Up to 225W PoE Budget — Supports IEEE 802.3af/at/bt with up to 90W output on Hi-PoE ports and a total PoE power budget of 225W.
• 300 m Long-Range PoE — Extends network and power transmission up to 300 m through ports 13–16, with actual performance dependent on the connected camera and cabling.
• Built for Surveillance — PoE watchdog automatically detects and restarts unresponsive cameras, while port isolation helps separate devices and improve network security.
• Rack-Ready Metal Construction — Features a high-strength metal housing, rack-mount installation with included mounting ears, 40 Gbps switching capacity, 29.76 Mpps forwarding rate, and 6 kV surge protection.
