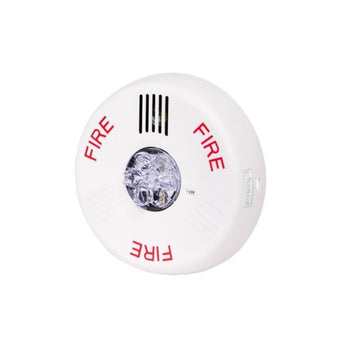

Potter PE-STWC

White Ceiling Mount PE Series LED Strobe

Potter PE-STWC White Ceiling Mount PE Series LED Strobe uses efficient LED technology to provide high-visibility visual notification with six field-selectable candela settings for indoor fire and life safety applications. Its low-profile ceiling-mount design features a hinged mounting plate for pre-wiring and testing, along with synchronization support and flexible field configuration for straightforward installation.

• Selectable LED Strobe Output — Offers six field-selectable candela settings from 15 to 177 cd for ceiling-mounted applications, allowing the visual output to be matched to installation requirements.
• Flexible Notification Platform — Supports synchronization with Potter fire alarm control panels and power supplies while allowing LED and xenon strobes to be mixed within the same field of view.
• Efficient 24V Operation — Uses LED technology for efficient operation with a 24VDC or 24VFWR strobe input and 25/70 VRMS speaker capability for compatible notification configurations.
• Installer-Friendly Design — Features a hinged mounting plate that allows the device to be pre-wired and pre-tested before final installation, with terminals accepting #12 through #18 AWG wire.
• Indoor Ceiling Mount — Features a low-profile white housing designed for ceiling installation, with operation from 32°F to 122°F, up to 93% maximum humidity, and a 1.54 lb construction.
