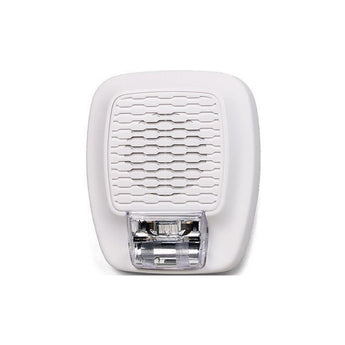

Gentex GHSLF110W White Horn-Strobe combines a low frequency 520 Hz audible alarm with a fixed 110 candela visual signal in a low-profile wall-mounted housing. Its selectable sound output, synchronized operation with the Gentex GTSM module, and installer-friendly mounting features provide dependable notification for occupancies requiring both audible and visual alarm coverage.

• Low Frequency Audible Alarm — Produces a 520 Hz square-wave Temporal 3 tone with a jumper-selectable normal or loud dBA setting, while Temporal 4 operation is available with a Gentex GTSM Synchronization Module.
• 110 Candela Strobe — Provides a fixed 110 candela visual signal and supports synchronized horn and strobe operation through the Gentex GTSM control module.
• Installer-Friendly Design — Includes a Super-Slide® mounting bracket for simplified supervision testing and Checkmate® for quick voltage verification, allowing the system to be prewired before installing the notification appliance.
• Flexible Wiring & Mounting — Designed for 24 VDC operation with input terminals accepting 12 to 18 AWG wiring and a wall-mount configuration measuring 6.5 × 5.5 × 2 inches.
• Durable Safety Construction — Features a tamper-resistant re-entrant grille and optional locking screw, with the 520 Hz Temporal 4 output measured according to ANSI/UL 2075 requirements.
