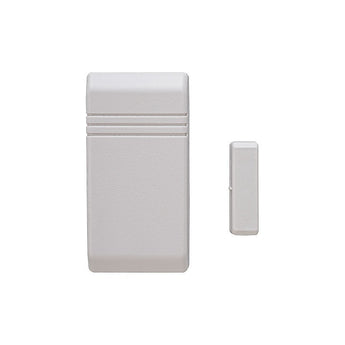

Napco GEMC-WL-WD2-2

Wireless 2-Input Module Door and Window Transmitter

Napco GEMC-WL-WD2-2 Wireless 2-Input Module Door and Window Transmitter provides two supervised wireless inputs for window, door, fire, and burglary applications within compatible Napco Gemini C-Series systems. Its built-in reed switch, external contact inputs, rear tamper, 3V lithium battery operation, and 319.5 MHz wireless communication provide flexible monitoring for both residential and commercial installations.

• Two-Zone Wireless Inputs — Provides two input points for monitoring the supplied magnet and supervised external contacts, allowing connection to compatible door/window sensors, pull stations, thermal detectors, waterflow switches, and other initiating devices.
• Gemini C-Series Compatibility — Designed for use with Napco Gemini C-Series wireless systems and GEMC-RECV-series receivers, with the GEMC-WL-WD2-2 supporting current UL 864 10th-edition installations with compatible control panel versions.
• 3V Lithium Battery Operation — Uses a 3V lithium battery for wireless operation and transmits low-battery status to the receiver when battery voltage drops below normal.
• Rear Tamper & Wireless Supervision — Includes a rear tamper switch to detect removal from the mounting surface, while the system provides supervision of the transmitter and associated wireless communication.
• Extended Wireless Range & Flexible Wiring — Operates at 319.5 MHz with a maximum receiver distance of up to 1,000 ft depending on the installation environment; external zone wiring supports up to 20 ft for burglary applications or 3 ft for fire applications.
