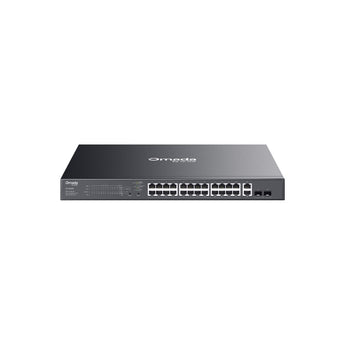

TP-Link ES228GMP

Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

The TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ provides high-speed network connectivity through 24 PoE+ ports, two additional Gigabit RJ45 ports, and two Gigabit SFP slots, delivering a combined 384W PoE power budget. Designed for business networks and large-scale surveillance installations, it combines centralized Omada cloud management, extended PoE transmission, advanced traffic control, and reliable Layer 2 switching capabilities in a durable rack-mountable enclosure.

• 28-Port Gigabit Connectivity & PoE+ — Features 24 IEEE 802.3af/at PoE+ Gigabit RJ45 ports, two additional Gigabit RJ45 ports, and two Gigabit SFP slots, providing up to 30W per PoE port with a shared 384W power budget.

• Centralized Omada Cloud Management — Supports web-based configuration, Omada app access, and compatible Omada controllers for remote monitoring, automatic device discovery, batch configuration, firmware upgrades, and zero-touch provisioning through a cloud-based controller.

• Extended PoE & Surveillance Optimization — Delivers PoE transmission up to 820 ft (250 m), Fast PoE, Perpetual PoE, PoE Auto Recovery, port isolation, and QoS traffic prioritization to maintain dependable operation across IP cameras, wireless access points, and other connected devices.

• Advanced Layer 2 Network Features — Includes 802.1Q VLAN with up to 32 VLAN groups, IGMP Snooping, automatic loopback detection, static link aggregation, port mirroring, storm control, and bandwidth management, with 56 Gbps switching capacity and a 41.66 Mpps forwarding rate.

• Durable Rackmount Design & Network Protection — Features a metal enclosure with dual cooling fans, standard rackmount installation, ±6kV surge protection, IEEE 802.3az energy-efficient Ethernet, and an operating temperature range of 23°F to 113°F for demanding network environments.
