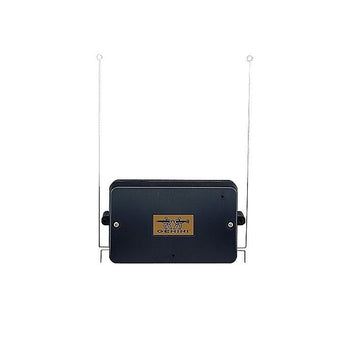

Napco GEM-RECV-XP8

8-Point Wireless Receiver for XP-Series and GEM-P800 Control Panels

Napco GEM-RECV-XP8 8-Point Wireless Receiver provides a hardwired interface between compatible XP-Series and GEM-P800 control panels and Napco wireless transmitters. Its 8-point capacity, dual diversity antennas, RF-jamming and tamper supervision, and low-current 12 VDC operation provide a flexible interface for wireless security devices including door/window sensors, smoke detectors, and space-protection devices.

• 8-Point Wireless Interface — Provides eight wireless points for compatible Napco control panels, allowing wireless transmitters to report zone status and supervision information without dedicated sensor wiring.
• XP-Series & GEM-P800 Compatibility — Designed for use with Wireless-Ready XP-400, XP-600, and GEM-P800 control panels as part of a compatible wired/wireless security system.
• Dual Diversity Antennas — Uses four-antenna receiver architecture and diversity reception to help minimize RF signal nulls and maintain reliable wireless communication.
• Supervision & System Monitoring — Supports tamper and RF-jamming supervision, separate programmable supervisory times by device type, and an audible fault-find mode for walk testing.
• Low-Current Hardwired Connection — Operates from 12 VDC at approximately 60 mA and connects directly to the compatible control panel, supporting wireless smoke detectors, window/door sensors, PIRs, and other Napco transmitters.
